Connection
Flanged
Pressure rating
PN16

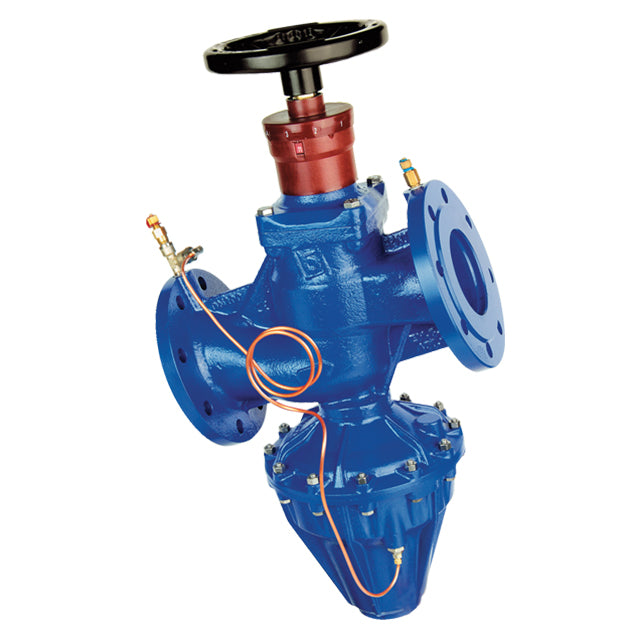

  • Modulating Differential Pressure Control Valve - ML Type
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Flanged PN16, Cast Iron Body, EPDM Seal. Controllable Differential Pressure between 0.2 and 0.8 bar.

Rated PN16.

Temperature -10°C to 120°C.

  • Connection: Flanged
  • Fitting: PN16
  • Material: Cast Iron
  • Pressure: Rated PN16.

    Temperature -10°C to 120°C.

  • Temperature: -10°C to 120°C

Product specification

General Material Cast Iron
Body Material Cast Iron
Seal Material EPDM
Connection Type Flanged
Fitting PN16
Pressure Rating PN16
Pressure Rule Rated PN16.
Temperature Range -10.0°C to 120.0°C
Category Code PV1
Product Family 1817

Modulating Differential Pressure Control Valve - ML Type

Available sizes: 2 ½"–6"

SKU: Select a size

Select a size for availability

Modulating Differential Pressure Control Valve - ML Type

From

£1,036.58 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
2 1/2"
£1,036.58 ex VAT
Available
3"
£1,225.95 ex VAT
Available
4"
£1,355.53 ex VAT
Available
5"
£2,043.26 ex VAT
Available
6"
£3,139.64 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
View full details
