Product features
Product features

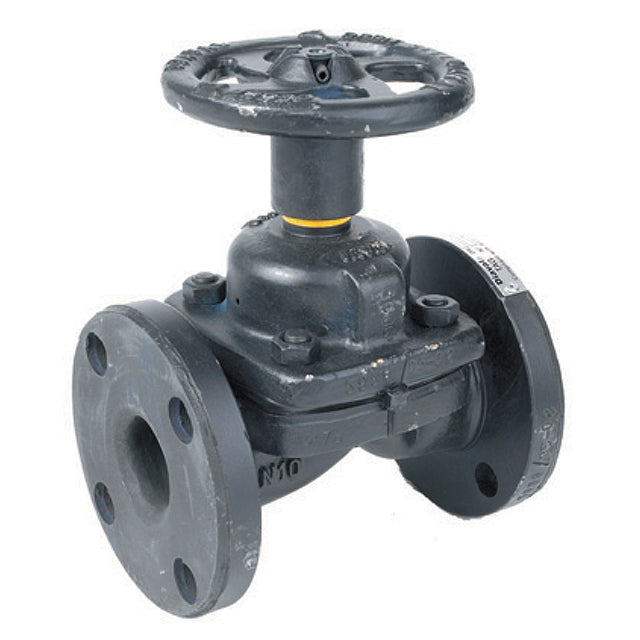

Flanged PN16, Ductile Iron Body & Bonnet, Handwheel Operated, EPDM Diaphragm.
Rated PN16 1" to 2", PN10 2½" to 6", Temperature -10°C to 120°C (100°C cont.)
- Connection: Flanged
- Fitting: PN16
- Material: Ductile Iron
- Pressure: Rated PN16 1" to 2", PN10 2 1/2" to 6"
- Temperature: -10°C to 120°C (100°C cont.)
Product specification
Product specification
| General Material | Ductile Iron |
|---|---|
| Handle Type | Wheelhead |
| Connection Type | Flanged |
| Fitting | PN16 | PN10 |
| Temperature Range | -10.0°C to 120.0°C |
| Category Code | PV1 |
| Product Family | 1866 |
