Pressure rating
PN10

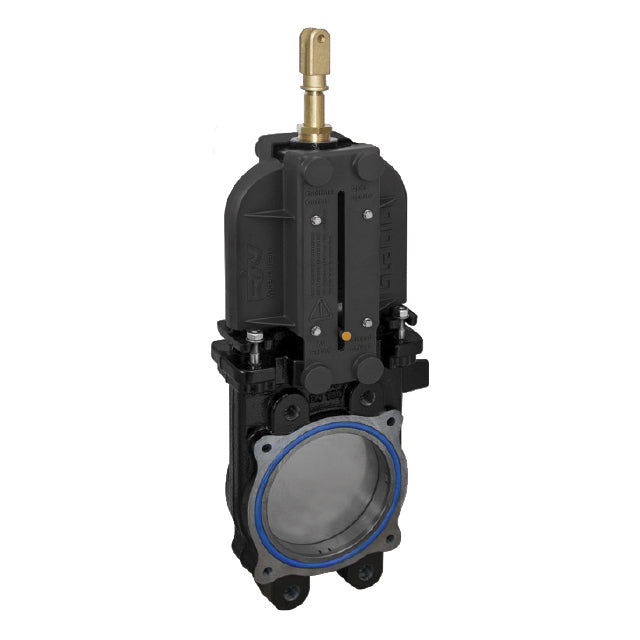

  • Cast Iron Knife Gate Valve - Unidirectional - For Lever Operation - AGRI Standard and PN10
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

To suit PN10 and AGRI Standard Square Flanges, 4 Hole. Cast Iron Body, Stainless Steel Blade, NBR Gaskets, Fully Enclosed for Safety, with Position Indicator. For Lever Operation.

Rated PN10.

  • Fitting: AGRI Standard Square
  • Material: Cast Iron
  • Body Material: Cast Iron
  • Handle Type: Lever
  • Pressure Rating: PN10
  • Temperature: -20°C to 90°C

Product specification

General Material Cast Iron
Body Material Cast Iron
Handle Type Lever
Fitting AGRI Standard Square
Pressure Rating PN10
Pressure Rule Rated PN10.
Temperature Range -20.0°C to 90.0°C
Manufacturer RIV
Category Code KV1
Product Family 1732

Cast Iron Knife Gate Valve - Unidirectional - For Lever Operation - AGRI Standard and PN10

Available sizes: 4"–10"

SKU: Select a size

Select a size for availability

Cast Iron Knife Gate Valve - Unidirectional - For Lever Operation - AGRI Standard and PN10

From

£316.46 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
4"
£316.46 ex VAT
Available
5"
£335.28 ex VAT
Available
6"
£361.81 ex VAT
Available
8"
£467.47 ex VAT
Available
10"
£906.47 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
View full details
