Material
Brass
Connection
Threaded
  • Brass Spring Safety/Limiting Relief Valve - Metal Seat
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Screwed BSPP Male, Cap Top, Metal Seat, Open Discharge.

Max Pressure 25 Bar, Temperature -10°C to 200°C.

  • Connection: Threaded
  • Fitting: BSPP
  • Material: Brass
  • Pressure: Max Pressure 25 Bar, Temperature -10°C to 200°C.
  • Temperature: -10°C to 200°C

Product specification

General Material Brass
Connection Type Threaded
Fitting BSPP
Pressure Rule Max Pressure 25 Bar.
Temperature Range -10.0°C to 200.0°C
Manufacturer FP
Category Code PV1
Product Family 1785

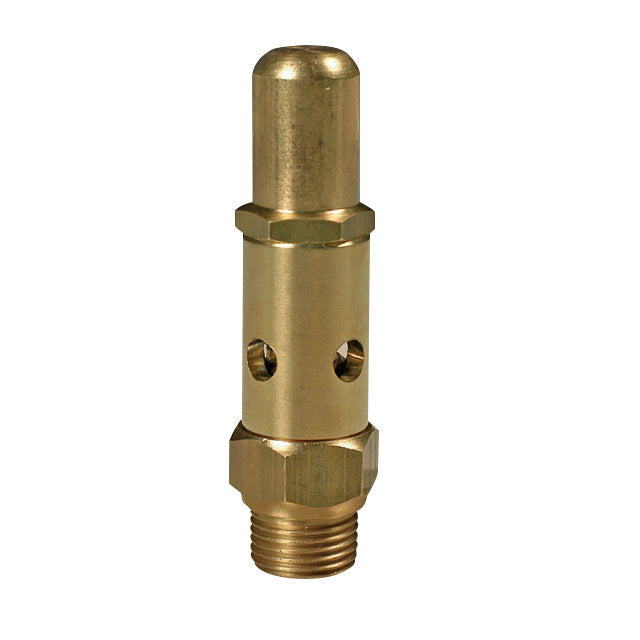

Brass Spring Safety/Limiting Relief Valve - Metal Seat

Available sizes: ½"–1"

SKU: Select a size

Select a size for availability

Brass Spring Safety/Limiting Relief Valve - Metal Seat

From

£39.54 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
1"
£85.04 ex VAT
Available
3/4"
£66.64 ex VAT
Available
1/2"
£39.54 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.
