Material
Brass
Connection
Threaded
Pressure rating
PN25

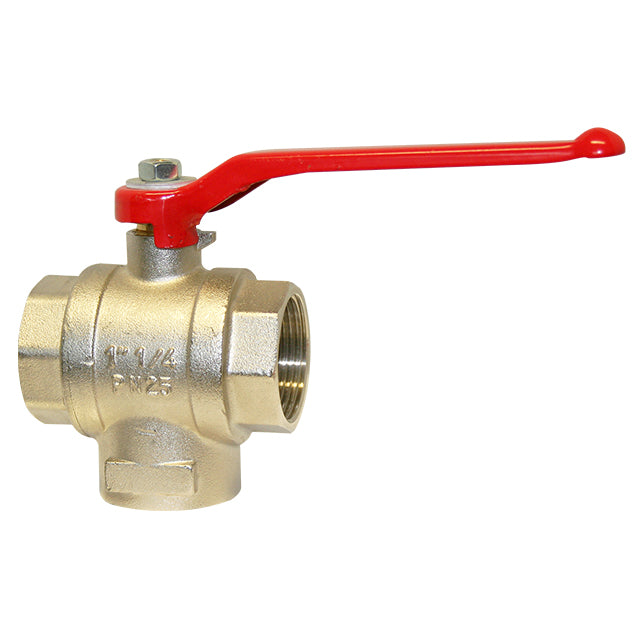

  • Brass Ball Valve - 3 Way - T Port Diverter - 180 Degree Operation
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Screwed BSPP, Nickel Plated Body, Full Bore, 180° Operation, Red Top Lever Operated.

  • Connection: Threaded
  • Fitting: BSPP
  • Material: Brass
  • Handle Type: Lever
  • Pressure Rating: PN25
  • Temperature: -10°C to 100°C

Product specification

General Material Brass
Handle Type Lever
Connection Type Threaded
Fitting BSPP
Pressure Rating PN25
Temperature Range -10.0°C to 100.0°C
Category Code BV1
Product Family 1353

Brass Ball Valve - 3 Way - T Port Diverter - 180 Degree Operation

Available sizes: ¼"–3"

SKU: Select a size

Select a size for availability

Brass Ball Valve - 3 Way - T Port Diverter - 180 Degree Operation

From

£26.03 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
1/4"
£26.03 ex VAT
Available
3/8"
£26.03 ex VAT
Available
1/2"
£27.30 ex VAT
Available
3/4"
£34.28 ex VAT
Available
1"
£43.30 ex VAT
Available
1 1/4"
£71.22 ex VAT
Available
1 1/2"
£101.33 ex VAT
Available
2"
£169.95 ex VAT
Available
3"
£392.11 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
View full details
