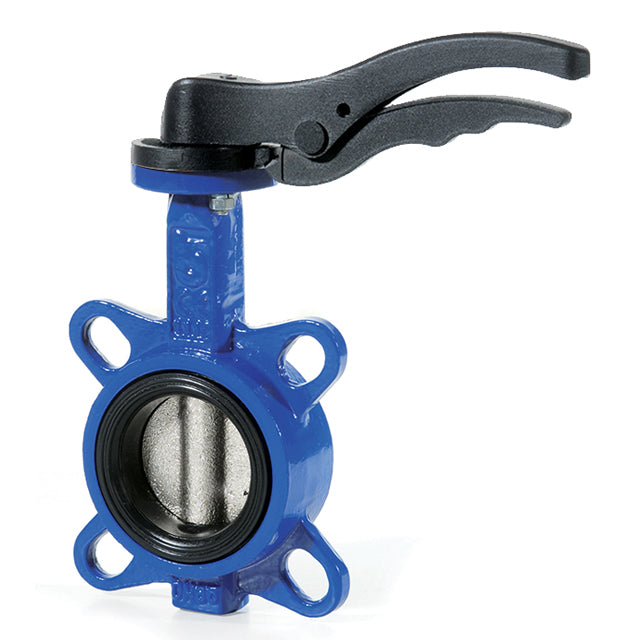

Multi-Flange Wafer Butterfly Valve - SS Disc - FKM/Viton Liner

Material: Stainless Steel
Connection: Wafer
Pressure rating: PN16

1 1

View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, Stainless Steel Disc, FKM (Viton) Liner, Locking Lever Operation 1½" to 12", Gearbox Operation 14" to 24", Complies with 97/23/CE (PED) Directive CE 1115

Flange Suitability: 1½" & 2" PN6/10/16/ANSI 150/Table D & Table E 2½" PN6/10/16 & ANSI 150 3" to 14" PN6/10/16/ANSI 150/Table D & Table E 16" PN6/10/16 & ANSI 150 18" to 24" PN10 or PN16 (must be specified at time of order)

Connection: Wafer
Fitting: PN6 | PN10 | PN16 | ANSI 150 | Wafer | Table D | Table E
Material: Ductile Iron
Body Material: Ductile Iron
Handle Type: Locking Lever
Pressure Rating: PN16
Temperature: -10°C to 140°C
Mounting Standard: ISO 5211 | Direct Mount
Approvals: PED | CE 1115

Product specification

General Material	Ductile Iron
Body Material	Ductile Iron
Disc Material	Stainless Steel
Liner Material	FKM
Handle Type	Locking Lever
Connection Type	Wafer
Fitting	PN6 \| PN10 \| PN16 \| ANSI 150 \| Wafer \| Table D \| Table E
Pressure Rating	PN16
Temperature Range	-10.0°C to 140.0°C
Manufacturer	Brandoni
Category Code	FL1
Product Family	1620
