Material
Stainless Steel
Connection
Wafer
Pressure rating
PN25

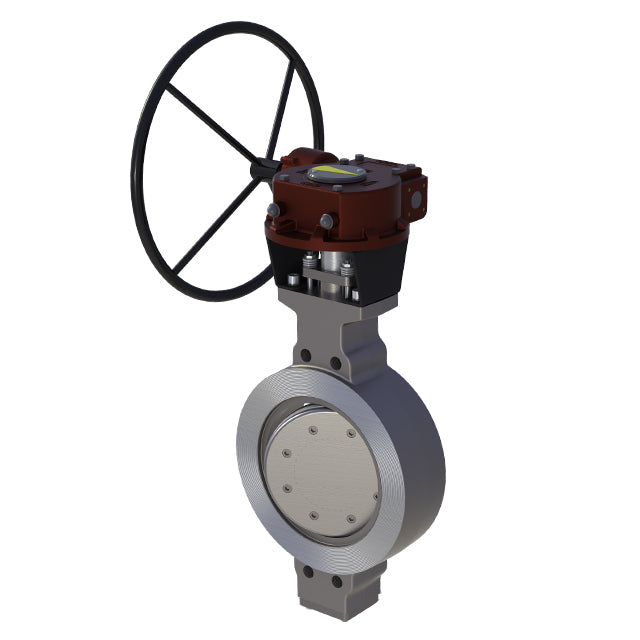

  • Stainless Steel High Performance Butterfly Valve - Wafer Type - Stainless Steel Disc - RPTFE & Inconel 625 Seat
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Wafer to suit PN10/16/25 & ANSI 150 Flanges 2" to 10", PN10/16 & ANSI 150 Flanges 12", Double Offset, Stainless Steel Body, Disc & Shaft, Firesafe Seat (Primary Seat RPTFE, Secondary Seat Inconel 625,) Lever Operated 2" to 5", Gearbox Operated 6" to 12", Firesafe to API 607 6th Edition

Rated PN25.

  • Connection: Wafer
  • Fitting: PN10 | PN16 | PN25 | ANSI 150 | Wafer
  • Material: Stainless Steel
  • Body Material: Stainless Steel
  • Handle Type: Lever
  • Pressure Rating: PN25
  • Temperature: -60°C to 230°C
  • Approvals: API 607

Product specification

General Material Stainless Steel
Body Material Stainless Steel
Disc Material Stainless Steel
Handle Type Lever
Connection Type Wafer
Fitting PN10 | PN16 | PN25 | ANSI 150 | Wafer
Pressure Rating PN25
Temperature Range -60.0°C to 230.0°C
Manufacturer Ghibson
Category Code BF1
Product Family 1330

Stainless Steel High Performance Butterfly Valve - Wafer Type - Stainless Steel Disc - RPTFE & Inconel 625 Seat

Available sizes: 2"–12"

SKU: Select a size

Select a size for availability

Stainless Steel High Performance Butterfly Valve - Wafer Type - Stainless Steel Disc - RPTFE & Inconel 625 Seat

From

£593.90 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
2"
£593.90 ex VAT
Available
2 1/2"
£648.47 ex VAT
Available
3"
£759.93 ex VAT
Available
4"
£946.81 ex VAT
Available
5"
£1,270.41 ex VAT
Available
6"
£1,702.52 ex VAT
Available
8"
£2,115.33 ex VAT
Available
10"
£3,284.46 ex VAT
Available
12"
£4,332.95 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
