Material
Stainless Steel
Connection
Lugged
Seat
R-PTFE
Pressure rating
PN25

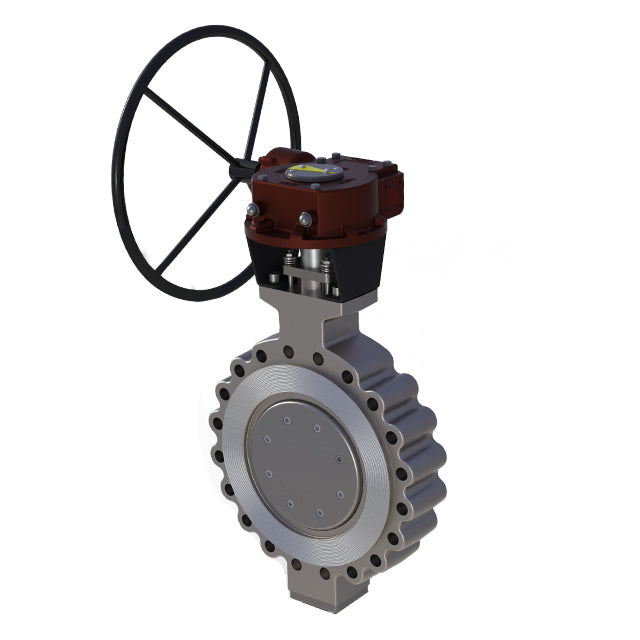

  • Stainless Steel High Performance Butterfly Valve - Lugged PN16-25 - Stainless Steel Disc - RPTFE Seat
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Lugged PN16/25 2" to 4", PN16 5" to 12", Double Offset, Stainless Steel Body, Disc & Shaft, RPTFE Seat, Lever Operated 2" to 5", Gearbox Operated 6" to 12"

Rated PN25. Also Available ANSI 150 Lugged and/or Inconel Seat -60°C to 450°C, Please Enquire

  • Connection: Lugged
  • Fitting: PN16 | PN25 | Lugged
  • Material: Stainless Steel
  • Body Material: Stainless Steel
  • Handle Type: Lever
  • Seat Material: R-PTFE
  • Pressure Rating: PN25
  • Temperature: -60°C to 230°C

Product specification

General Material Stainless Steel
Body Material Stainless Steel
Disc Material Stainless Steel
Seat Material R-PTFE
Handle Type Lever
Connection Type Lugged
Fitting PN16 | PN25 | Lugged
Pressure Rating PN25
Temperature Range -60.0°C to 230.0°C
Manufacturer Ghibson
Category Code BF1
Product Family 1329

Stainless Steel High Performance Butterfly Valve - Lugged PN16-25 - Stainless Steel Disc - RPTFE Seat

Available sizes: 2"–12"

SKU: Select a size

Select a size for availability

Stainless Steel High Performance Butterfly Valve - Lugged PN16-25 - Stainless Steel Disc - RPTFE Seat

From

£671.47 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
2"
£671.47 ex VAT
Available
2 1/2"
£785.93 ex VAT
Available
3"
£914.53 ex VAT
Available
4"
£1,173.28 ex VAT
Available
5"
£1,542.96 ex VAT
Available
6"
£1,995.82 ex VAT
Available
8"
£2,380.35 ex VAT
Available
10"
£3,737.15 ex VAT
Available
12"
£5,380.53 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
