Material: Stainless Steel
Connection: Wafer
Pressure rating: PN16

View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

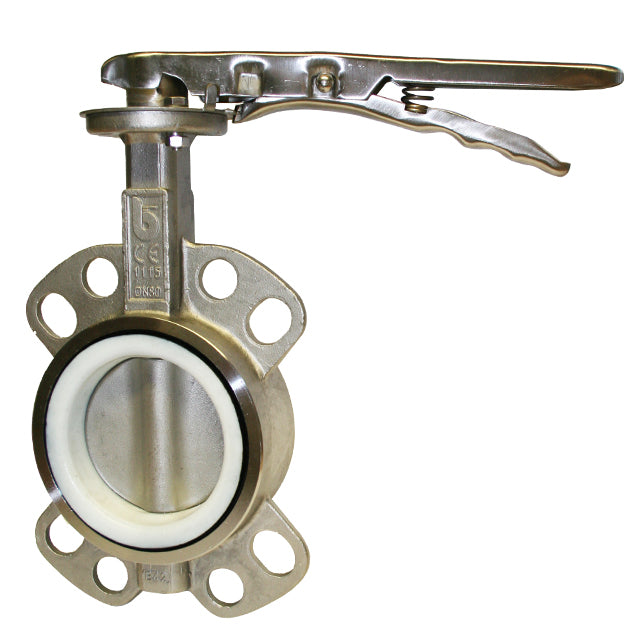

ISO 5211 for Direct Mount, Stainless Steel Body & Disc, PTFE Liner. Stainless Steel Lever Operated up to 5", 8" Gearbox Operated, Complies with 97/23/CE (PED) Directive CE 1115.

Flange Suitability: 2" PN6/10/16/ANSI 150/Table D & Table E 2½" PN6/10/16 & ANSI 150 3" to 8" PN6/10/16/ANSI 150/Table D & Table E

Connection: Wafer
Fitting: PN6 | PN10 | PN16 | ANSI 150 | Wafer | Table D | Table E
Material: Stainless Steel
Body Material: Stainless Steel
Handle Type: Lever
Pressure Rating: PN16
Temperature: -10°C to 120°C
Mounting Standard: ISO 5211 | Direct Mount
Approvals: PED | CE 1115

Product specification

General Material	Stainless Steel
Body Material	Stainless Steel
Disc Material	Stainless Steel
Liner Material	PTFE
Handle Type	Lever
Connection Type	Wafer
Fitting	PN6 \| PN10 \| PN16 \| ANSI 150 \| Wafer \| Table D \| Table E
Pressure Rating	PN16
Temperature Range	-10.0°C to 120.0°C
Manufacturer	Brandoni
Category Code	BF1
Product Family	1337
