Available
- Material
- Stainless Steel
- Connection
- Wafer
- Pressure rating
- PN16
View datasheet
Product features
Product features

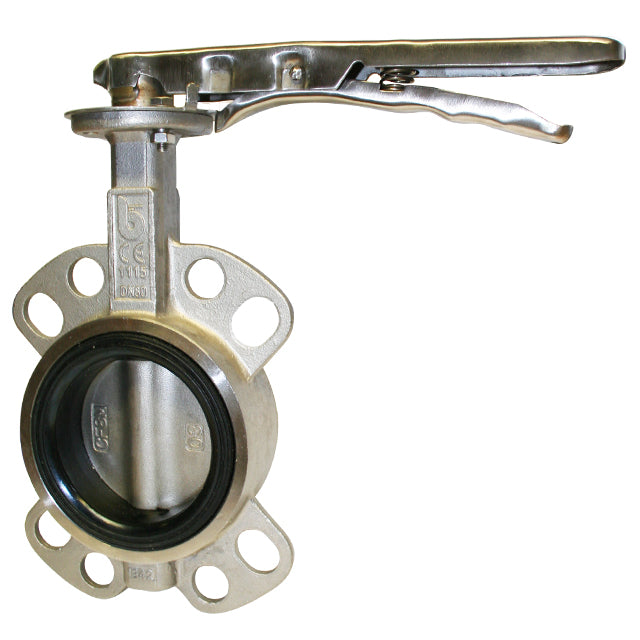

ISO 5211 for Direct Mount, Stainless Steel Body & Disc, EPDM Liner, Stainless Steel Lever Operated, Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: 2" PN6/10/16/ANSI 150/Table D & Table E 2½" PN6/10/16 & ANSI 150 3" to 8" PN6/10/16/ANSI 150/Table D & Table E
- Connection: Wafer
- Fitting: PN6 | PN10 | PN16 | ANSI 150 | Wafer | Table D | Table E
- Material: Stainless Steel
- Body Material: Stainless Steel
- Handle Type: Lever
- Pressure Rating: PN16
- Temperature: -10°C to 120°C
- Mounting Standard: ISO 5211 | Direct Mount
- Approvals: PED | CE 1115
Product specification
Product specification
| General Material | Stainless Steel |
|---|---|
| Body Material | Stainless Steel |
| Disc Material | Stainless Steel |
| Liner Material | EPDM |
| Handle Type | Lever |
| Connection Type | Wafer |
| Fitting | PN6 | PN10 | PN16 | ANSI 150 | Wafer | Table D | Table E |
| Pressure Rating | PN16 |
| Temperature Range | -10.0°C to 120.0°C |
| Manufacturer | Brandoni |
| Category Code | BF1 |
| Product Family | 1335 |
