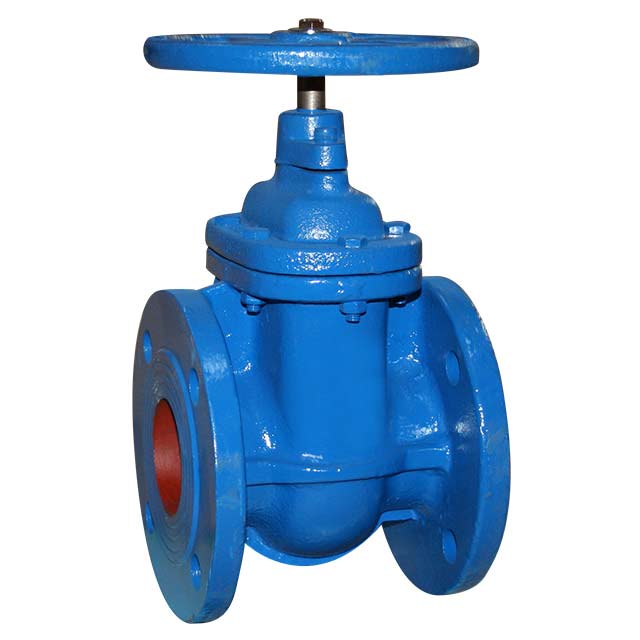

Cast Iron Gate Valve - Flanged PN16 - Stainless Steel Stem

Material: Stainless Steel
Connection: Flanged
Pressure rating: PN16

1 1

View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Flanged PN16 (8" Available Flanged PN10 or PN16), Cast Iron Body, Cast Brass Seat, Stainless Steel Stem, Inside Screw, Non-rising Stem. Conforms to DIN 3202 F4.

Rated PN16, Temperature -10°C to 120°C.

Connection: Flanged
Fitting: PN16
Material: Cast Iron
Body Material: Cast Iron
Pressure Rating: PN16
Temperature: -10°C to 120°C

Product specification

General Material	Cast Iron
Body Material	Cast Iron
Stem Material	Stainless Steel
Connection Type	Flanged
Fitting	PN16
Pressure Rating	PN16
Temperature Range	-10.0°C to 120.0°C
Category Code	GV1
Product Family	1660
