Connection
Flanged
Pressure rating
PN16

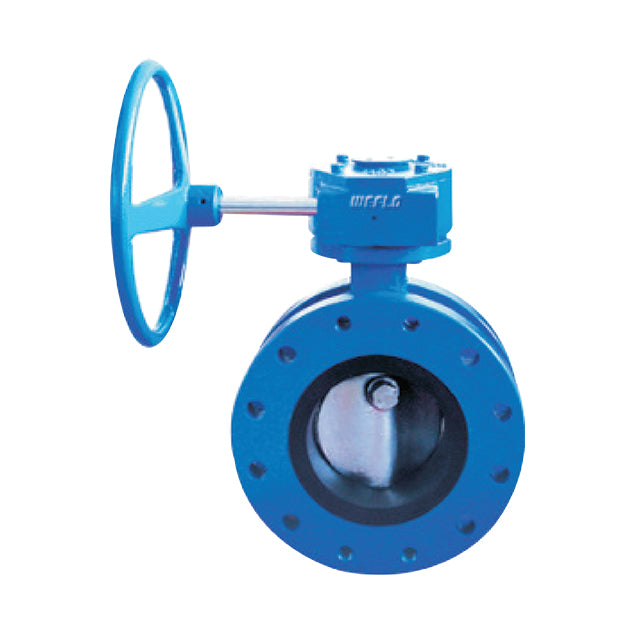

  • Double Flanged Butterfly Valve - EPDM Liner - to suit PN16 flanges
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, Ductile Iron Disc, EPDM Liner, Gearbox Operated. WRAS Approved components.

Rated PN16. Note: Gearbox operation for all sizes. To fit PN16 Flanges.

  • Connection: Flanged
  • Fitting: PN16
  • Material: Ductile Iron
  • Body Material: Ductile Iron
  • Pressure Rating: PN16
  • Temperature: -10°C to 120°C
  • Mounting Standard: ISO 5211 | Direct Mount
  • Approvals: WRAS

Product specification

General Material Ductile Iron
Body Material Ductile Iron
Liner Material EPDM
Connection Type Flanged
Fitting PN16
Pressure Rating PN16
Temperature Range -10.0°C to 120.0°C
WRAS Approval true
Manufacturer Weflo
Category Code BF1
Product Family 1312

Double Flanged Butterfly Valve - EPDM Liner - to suit PN16 flanges

Available sizes: 3"–12"

SKU: Select a size

Select a size for availability

Double Flanged Butterfly Valve - EPDM Liner - to suit PN16 flanges

From

£224.95 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
12"
£1,114.14 ex VAT
Available
10"
£759.49 ex VAT
Available
8"
£573.25 ex VAT
Available
6"
£356.77 ex VAT
Available
4"
£262.44 ex VAT
Available
3"
£224.95 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
View full details
