Connection
Flanged
Pressure rating
CL150

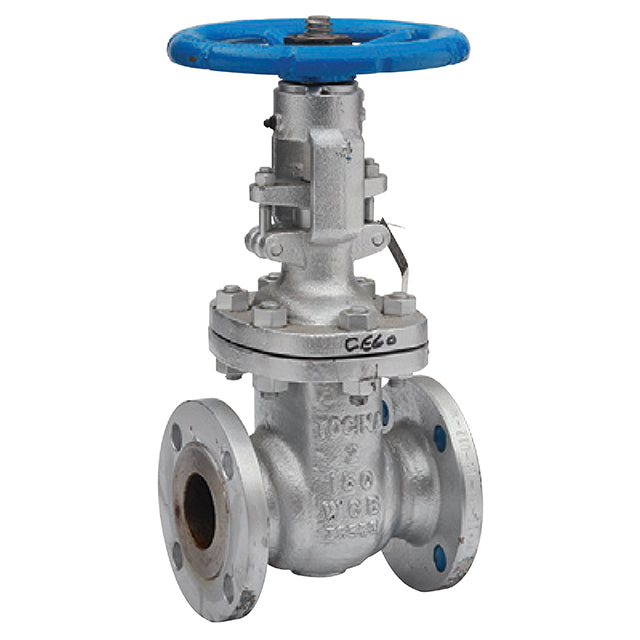

  • Cast Steel Gate Valve - Flanged ANSI 150
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Flanged ANSI 150 RF, A216 Gr WCB, Trim 13% CR + HFS, Oustide Screw & Yoke, Bolted Bonnet, Design to API 600 Rated CL150, Temperature -29°C to 425°C.

  • Connection: Flanged
  • Fitting: ANSI 150
  • Material: Cast Steel
  • Pressure Rating: CL150
  • Temperature: -29°C to 425°C

Product specification

General Material Cast Steel
Connection Type Flanged
Fitting ANSI 150
Pressure Rating CL150
Temperature Range -29.0°C to 425.0°C
Category Code GV1
Product Family 1663

Cast Steel Gate Valve - Flanged ANSI 150

GV1-1663-800

Lead time on request

Cast Steel Gate Valve - Flanged ANSI 150

£1,336.83 ex VAT

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance
Size
