Connection
Flanged
Pressure rating
CL150

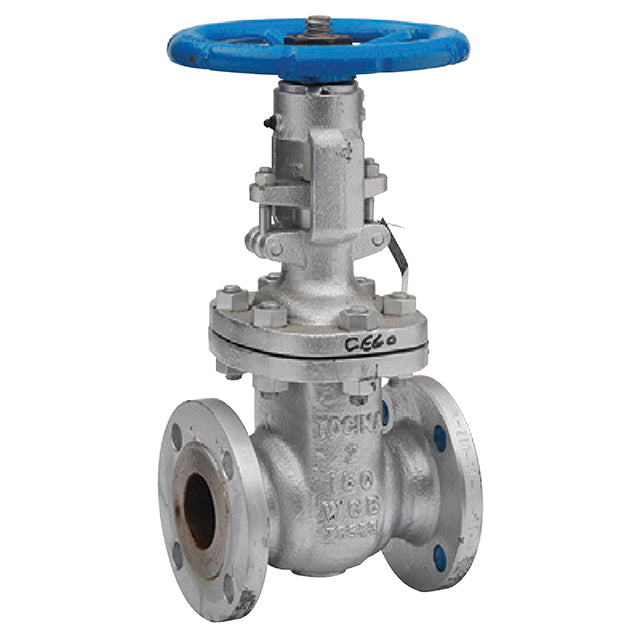

  • Cast Steel Gate Valve - Flanged PN16
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Flanged PN16, A216 Gr WCB, Trim 13% CR + HFS, Oustide Screw & Yoke, Bolted Bonnet, Design to API 600 Rated CL150, Temperature -29°C to 425°C.

  • Connection: Flanged
  • Fitting: PN16
  • Material: Cast Steel
  • Pressure Rating: CL150
  • Temperature: -29°C to 425°C

Product specification

General Material Cast Steel
Connection Type Flanged
Fitting PN16
Pressure Rating CL150
Temperature Range -29.0°C to 425.0°C
Category Code GV1
Product Family 1665

Cast Steel Gate Valve - Flanged PN16

Available sizes: 2"–8"

SKU: Select a size

Select a size for availability

Cast Steel Gate Valve - Flanged PN16

From

£231.06 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
2"
£231.06 ex VAT
Available
2 1/2"
£308.08 ex VAT
Available
3"
£396.51 ex VAT
Available
4"
£487.80 ex VAT
Available
6"
£767.12 ex VAT
Available
8"
£1,223.08 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
View full details
