Connection
Flanged
Pressure rating
CL300

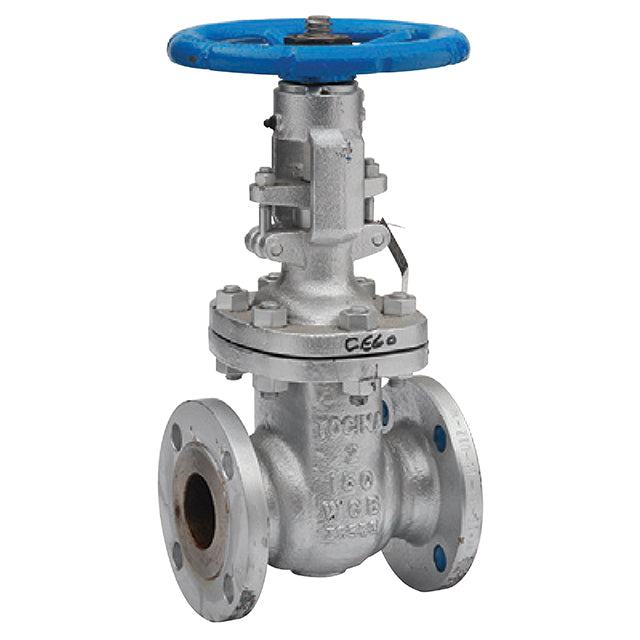

  • Cast Steel Gate Valve - Flanged ANSI 300
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Flanged ANSI 300 RF, A216 Gr WCB, Trim 13% CR + HFS, Oustide Screw & Yoke, Bolted Bonnet, Design to API 600 Rated CL300, Temperature -29°C to 425°C.

  • Connection: Flanged
  • Fitting: ANSI 300
  • Material: Cast Steel
  • Pressure Rating: CL300
  • Temperature: -29°C to 425°C

Product specification

General Material Cast Steel
Connection Type Flanged
Fitting ANSI 300
Pressure Rating CL300
Temperature Range -29.0°C to 425.0°C
Category Code GV1
Product Family 1664

Cast Steel Gate Valve - Flanged ANSI 300

Available sizes: 2"–8"

SKU: Select a size

Select a size for availability

Cast Steel Gate Valve - Flanged ANSI 300

From

£303.55 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
2"
£303.55 ex VAT
Available
2 1/2"
£368.14 ex VAT
Available
3"
£497.32 ex VAT
Available
4"
£624.35 ex VAT
Available
6"
£1,097.98 ex VAT
Available
8"
£1,636.20 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
