Material
Brass
Connection
Threaded
Seat
R-PTFE
Pressure rating
PN40

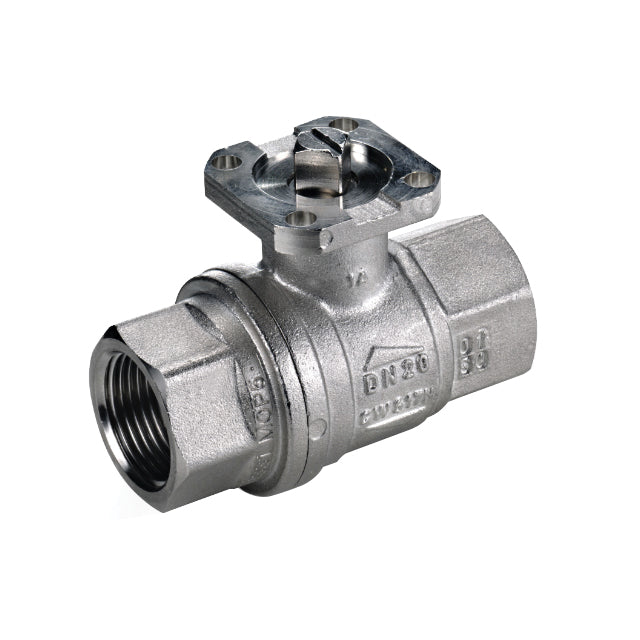

  • Brass Ball Valve - ISO Top - WRAS Approved
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Screwed BSPP, ISO 5211 Connection for Direct Mount, Nickel Plated Brass Body, RPTFE Seats. WRAS Approved.

  • Connection: Threaded
  • Fitting: BSPP
  • Material: Brass
  • Seat Material: R-PTFE
  • Mounting: ISO 5211 | Direct Mount
  • Pressure Rating: PN40
  • Temperature: -20°C to 170°C
  • Approvals: WRAS Approved

Product specification

General Material Brass
Body Material Brass
Seat Material R-PTFE
Connection Type Threaded
Fitting BSPP
Mounting Standard ISO 5211 | Direct Mount
Pressure Rating PN40
Pressure Rule Rated PN40 1/2" to 2", PN30 2 1/2" to 4", Temperature -20°C to 170°C
Temperature Range -20.0°C to 170.0°C
WRAS Approval true
Manufacturer RUB
Category Code BV1
Product Family 1378

Brass Ball Valve - ISO Top - WRAS Approved

Available sizes: ½"–4"

SKU: Select a size

Select a size for availability

Brass Ball Valve - ISO Top - WRAS Approved

From

£14.30 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
1/2"
£14.30 ex VAT
Available
3/4"
£21.04 ex VAT
Available
1"
£33.41 ex VAT
Available
1 1/4"
£55.98 ex VAT
Available
1 1/2"
£78.72 ex VAT
Available
2"
£121.96 ex VAT
Available
2 1/2"
£293.94 ex VAT
Available
3"
£363.89 ex VAT
Available
4"
£529.23 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
