Material
Brass
Connection
Threaded
Pressure rating
PN40

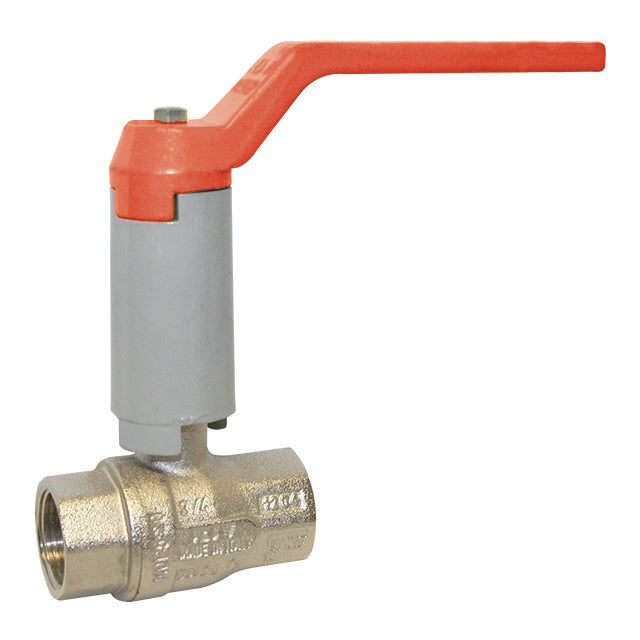

  • Brass Ball Valve - fitted with Neck Extension
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Screwed BSPP, Nickel Plated Body, Full Bore, Fitted with Neck Extension. For Use with Thermal Insulation, Neck will Rotate when Handle Turned. WRAS Approved.

  • Connection: Threaded
  • Fitting: BSPP
  • Material: Brass
  • Pressure Rating: PN40
  • Temperature: -20°C to 110°C
  • Approvals: WRAS Approved

Product specification

General Material Brass
Connection Type Threaded
Fitting BSPP
Pressure Rating PN40
Pressure Rule Rated PN40 1/4" to 1/2", PN32 3/4" & 1", PN25 1 1/4" to 2 1/2", PN16 3" & 4", Temperature -20°C to 110°C.
Temperature Range -20.0°C to 110.0°C
WRAS Approval true
Manufacturer RIV
Category Code BV1
Product Family 1380

Brass Ball Valve - fitted with Neck Extension

Available sizes: ¼"–4"

SKU: Select a size

Select a size for availability

Brass Ball Valve - fitted with Neck Extension

From

£9.80 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
1"
£15.31 ex VAT
Available
1 1/4"
£32.99 ex VAT
Available
1 1/2"
£39.83 ex VAT
Available
2"
£53.49 ex VAT
Available
2 1/2"
£83.94 ex VAT
Available
3"
£150.32 ex VAT
Available
4"
£224.74 ex VAT
Available
1/4"
£9.80 ex VAT
Available
3/8"
£9.80 ex VAT
Available
1/2"
£10.82 ex VAT
Available
3/4"
£11.90 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
View full details
