Material
Brass
Connection
Threaded
Pressure rating
PN64

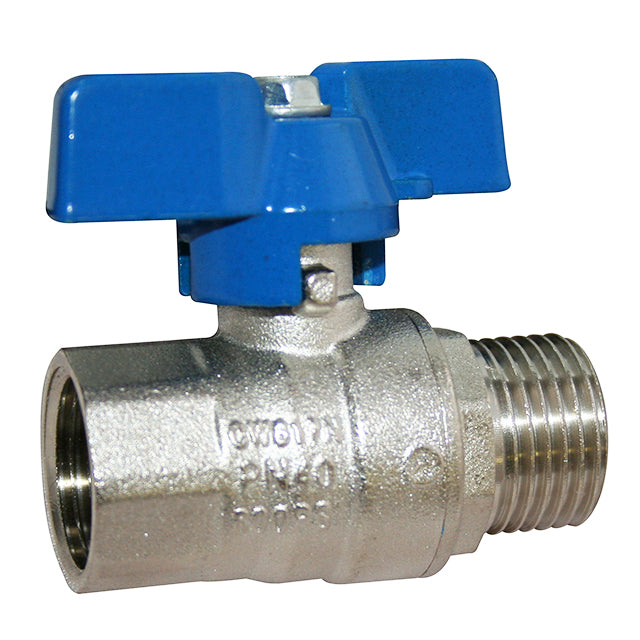

  • Brass Ball Valve - Standard Pattern - Male x Female - Blue Butterfly Handle
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Screwed BSPT Male x BSPP Female ¼" & ⅜", Screwed BSPP Male x BSPP Female ½" to 1", Nickel Plated Body, Full Bore, Blue Butterfly Handle, WRAS Approved.

  • Connection: Threaded
  • Fitting: BSPP | BSPT
  • Material: Brass
  • Handle Type: Butterfly Handle
  • Pressure Rating: PN64
  • Temperature: -20°C to 110°C
  • Approvals: WRAS Approved

Product specification

General Material Brass
Handle Type Butterfly Handle
Connection Type Threaded
Fitting BSPP | BSPT
Pressure Rating PN64
Pressure Rule Rated PN64 1/4" & 3/8", PN40 1/2", PN32 3/4" & 1". Temperature -20°C to 110°C.
Temperature Range -20.0°C to 110.0°C
WRAS Approval true
Manufacturer RIV
Category Code BV1
Product Family 1399

Brass Ball Valve - Standard Pattern - Male x Female - Blue Butterfly Handle

Available sizes: ¼"–1"

SKU: Select a size

Select a size for availability

Brass Ball Valve - Standard Pattern - Male x Female - Blue Butterfly Handle

From

£4.41 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
1/4"
£4.41 ex VAT
Available
3/8"
£4.76 ex VAT
Available
1/2"
£4.90 ex VAT
Available
3/4"
£7.23 ex VAT
Available
1"
£10.52 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
