Connection
Flanged
Seat
R-PTFE
Pressure rating
PN16

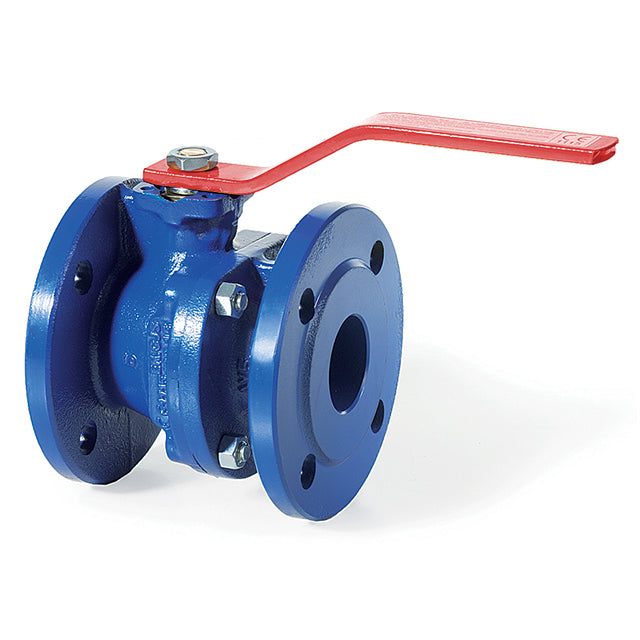

  • Cast Iron Ball Valve - Flanged ANSI 150 - Direct Mount
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

ISO 5211 for Direct Mount. Flanged ANSI 150, Cast Iron Body, 304 Stainless Steel Ball & Stem, RPTFE Seat, Viton O-rings, Steel Lever Operated. DIN 3202 F4 Face to Face.

  • Connection: Flanged
  • Fitting: ANSI 150
  • Material: Cast Iron
  • Seat Material: R-PTFE
  • O-Ring Material: Viton
  • Handle Type: Lever
  • Mounting: ISO 5211 | Direct Mount
  • Pressure Rating: PN16
  • Temperature: -10°C to 100°C

Product specification

General Material Cast Iron
Body Material Cast Iron
Seat Material R-PTFE
O-Ring Material Viton
Handle Type Lever
Connection Type Flanged
Fitting ANSI 150
Mounting Standard ISO 5211 | Direct Mount
Pressure Rating PN16
Temperature Range -10.0°C to 100.0°C
Manufacturer Brandoni
Category Code BV1
Product Family 1454

Cast Iron Ball Valve - Flanged ANSI 150 - Direct Mount

Available sizes: ½"–8"

SKU: Select a size

Select a size for availability

Cast Iron Ball Valve - Flanged ANSI 150 - Direct Mount

From

£110.37 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
1"
£131.06 ex VAT
Available
1 1/2"
£174.75 ex VAT
Available
2"
£200.04 ex VAT
Available
3"
£344.90 ex VAT
Available
4"
£534.60 ex VAT
Available
6"
£1,355.19 ex VAT
Available
8"
£3,131.26 ex VAT
Available
3/4"
£111.52 ex VAT
Available
1/2"
£110.37 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
View full details
