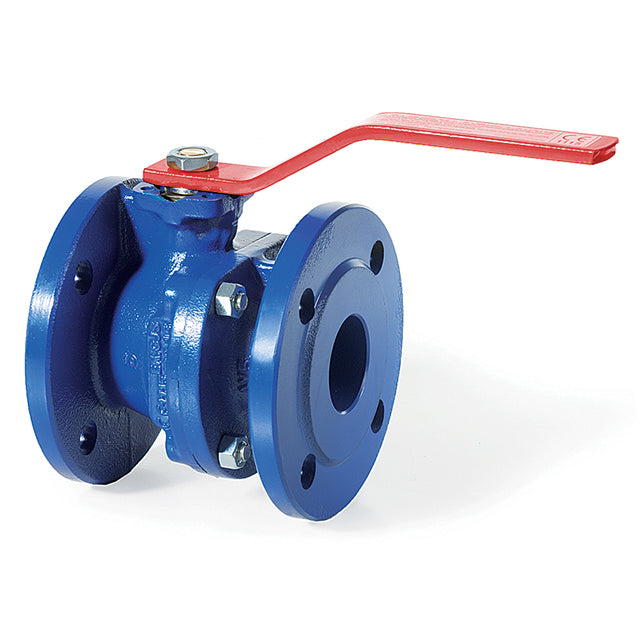

Ductile Iron Ball Valve - Flanged PN16 - Brass Ball & Stem

Material: Brass
Connection: Flanged
Seat: R-PTFE
Pressure rating: PN16

1 1

View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

ISO 5211 for Direct Mount, Flanged PN16, Ductile Iron Body, Brass Ball & Stem, RPTFE Seats, Viton O-rings, Steel Lever Operated. DIN 3202 F4 Face to Face ½" to 6", F5 8".

Connection: Flanged
Fitting: PN16
Material: Ductile Iron
Seat Material: R-PTFE
O-Ring Material: Viton
Handle Type: Lever
Mounting: ISO 5211 | Direct Mount
Pressure Rating: PN16
Temperature: -10°C to 150°C

Product specification

General Material	Ductile Iron
Body Material	Ductile Iron
Seat Material	R-PTFE
O-Ring Material	Viton
Handle Type	Lever
Connection Type	Flanged
Fitting	PN16
Mounting Standard	ISO 5211 \| Direct Mount
Pressure Rating	PN16
Temperature Range	-10.0°C to 150.0°C
Manufacturer	Brandoni
Category Code	BV1
Product Family	1459
