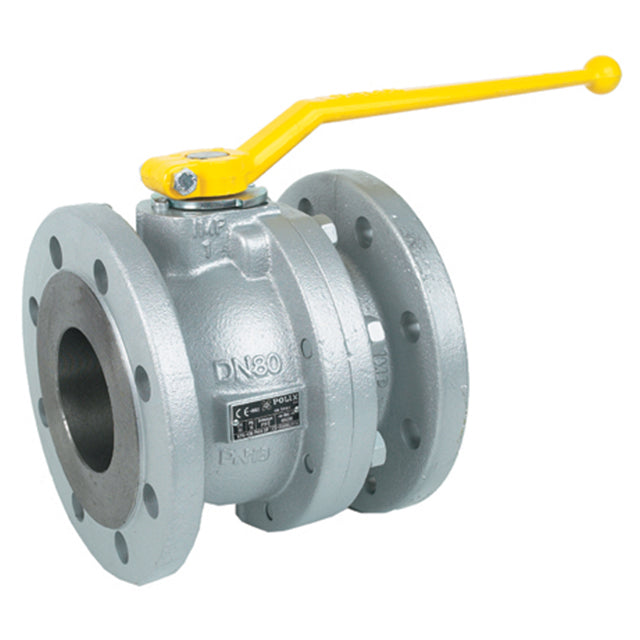

Ductile Iron Ball Valve - Flanged PN16 - EN331 Gas Approved

Connection: Flanged
Seat: PTFE
Pressure rating: PN16

1 1

View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Flanged PN16, Ductile Iron 2 Piece Body, Stainless Steel Ball & Stem, PTFE Seats, 1" to 6" Lever Operated, 8" to 12" Gearbox Operated, DIN 3202 F4 Face to Face 1" to 6", F5 - 8" to 12"

Connection: Flanged
Fitting: PN16
Material: Ductile Iron
Seat Material: PTFE
Handle Type: Lever
Pressure Rating: PN16
Temperature: -20°C to 60°C
Approvals: EN331

Product specification

General Material	Ductile Iron
Body Material	Ductile Iron
Seat Material	PTFE
Handle Type	Lever
Connection Type	Flanged
Fitting	PN16
Pressure Rating	PN16
Temperature Range	-20.0°C to 60.0°C
Additional Approvals	EN331
Manufacturer	Polix
Category Code	BV1
Product Family	1462
