Connection: Lugged & Tapped
Pressure rating: PN10

View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

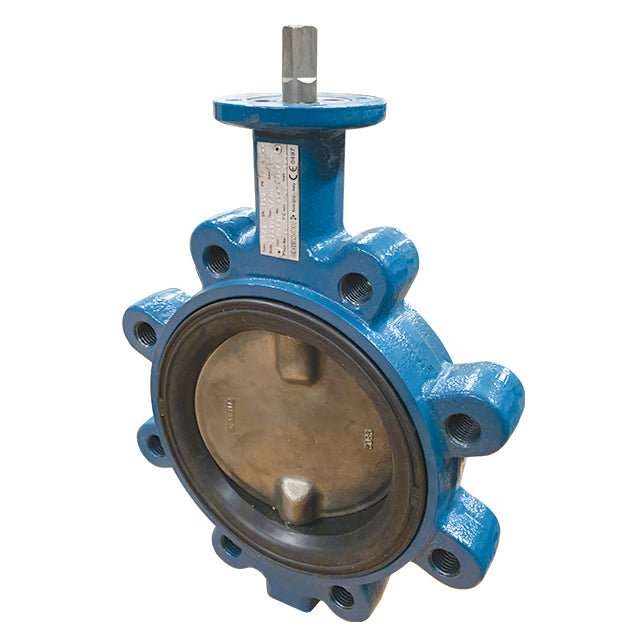

Lugged PN10/16, ISO 5211 for Direct Mount, Low Torque Design, Epoxy Coated Ductile Iron Body, 316 Stainless Steel Disc, NBR Liner. Complies with 97/23/CE (PED) Directive CE 1115. ATEX Approved.

Rated PN10.

Connection: Lugged & Tapped
Fitting: PN10 | PN16 | Lugged & Tapped
Material: Ductile Iron
Body Material: Ductile Iron
Pressure Rating: PN10
Temperature: -10°C to 100°C
Mounting Standard: ISO 5211 | Direct Mount
Approvals: PED | CE 1115 | ATEX

Product specification

General Material	Ductile Iron
Body Material	Ductile Iron
Disc Material	Stainless Steel
Liner Material	NBR
Connection Type	Lugged & Tapped
Fitting	PN10 \| PN16 \| Lugged & Tapped
Pressure Rating	PN10
Temperature Range	-10.0°C to 100.0°C
Manufacturer	Ghibson
Category Code	BF1
Product Family	1314
