Available
- Connection
- Lugged & Tapped
- Pressure rating
- PN16
View datasheet
Product features
Product features

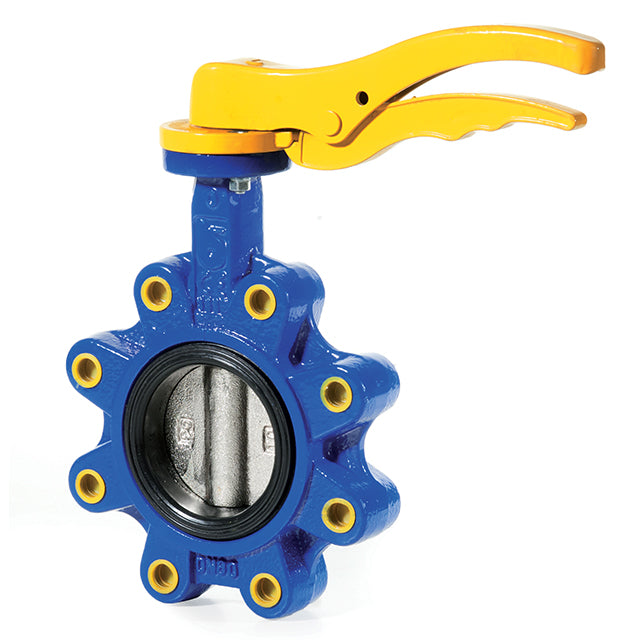

ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, Nickel Plated Ductile Iron Disc, NBR (Buna) Liner, Locking Lever Operation 1½" to 12", Gearbox Operation 14" to 24", Complies with 97/23/CE (PED) Directive CE 1115.
Rated PN16 1½" to 12", PN10 14" to 24".
- Connection: Lugged & Tapped
- Fitting: PN10 | PN16 | Lugged & Tapped
- Material: Ductile Iron
- Body Material: Ductile Iron
- Handle Type: Locking Lever
- Pressure Rating: PN16
- Temperature: -10°C to 80°C
- Mounting Standard: ISO 5211 | Direct Mount
- Approvals: PED | CE 1115
Product specification
Product specification
| General Material | Ductile Iron |
|---|---|
| Body Material | Ductile Iron |
| Disc Material | Nickel Plated Ductile Iron |
| Liner Material | NBR |
| Handle Type | Locking Lever |
| Connection Type | Lugged & Tapped |
| Fitting | PN10 | PN16 | Lugged & Tapped |
| Pressure Rating | PN16 |
| Temperature Range | -10.0°C to 80.0°C |
| Manufacturer | Brandoni |
| Category Code | BF1 |
| Product Family | 1319 |
Related products
Available
Available
Sold out

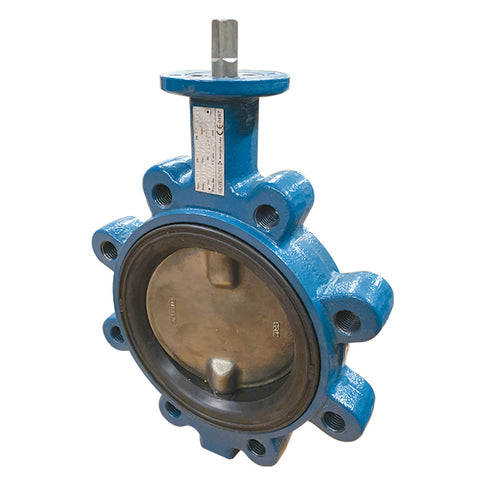

Ductile Iron Lugged & Tapped Butterfly Valve - Low Torque - NBR
