Material
Stainless Steel
Connection
Flanged
Seat
PTFE
Pressure rating
PN16
  • Stainless Steel 3 Way Ball Valve - PN16 - T Port - ISO Top
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

ISO 5211 for Direct Mount, Flanged PN16, Full Bore, Stainless Steel Body, Ball & Stem, PTFE Seats & Seals.

  • Connection: Flanged
  • Fitting: PN16
  • Material: Stainless Steel
  • Seat Material: PTFE
  • Seal Material: PTFE
  • Mounting: ISO 5211 | Direct Mount
  • Pressure Rating: PN16
  • Temperature: -29°C to 180°C

Product specification

General Material Stainless Steel
Body Material Stainless Steel
Seat Material PTFE
Seal Material PTFE
Connection Type Flanged
Fitting PN16
Mounting Standard ISO 5211 | Direct Mount
Pressure Rating PN16
Temperature Range -29.0°C to 180.0°C
Manufacturer Valtec
Category Code BV1
Product Family 1474

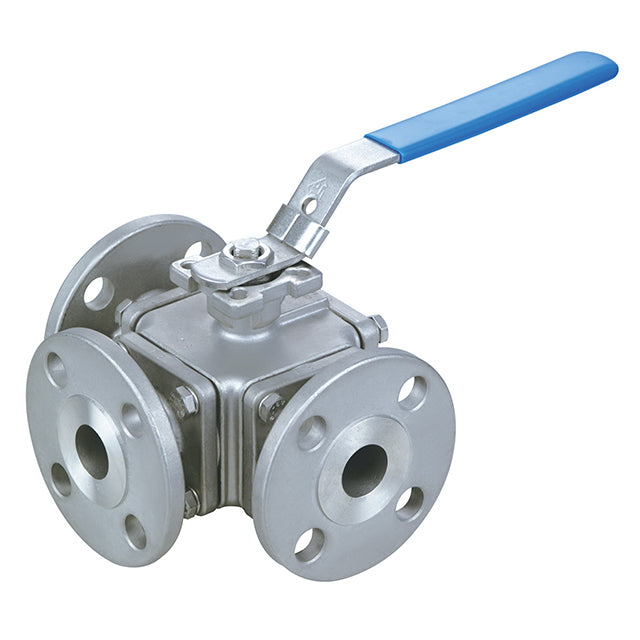

Stainless Steel 3 Way Ball Valve - PN16 - T Port - ISO Top

Available sizes: ½"–6"

SKU: Select a size

Select a size for availability

Stainless Steel 3 Way Ball Valve - PN16 - T Port - ISO Top

From

£208.12 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
1/2"
£208.12 ex VAT
Available
3/4"
£256.15 ex VAT
Available
1"
£352.25 ex VAT
Available
1 1/2"
£608.43 ex VAT
Available
2"
£810.61 ex VAT
Available
2 1/2"
£1,146.38 ex VAT
Available
3"
£1,482.28 ex VAT
Available
4"
£2,316.00 ex VAT
Available
6"
£6,343.88 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
View full details
