Material
Stainless Steel
Connection
Threaded
Seat
PTFE
Pressure rating
PN63

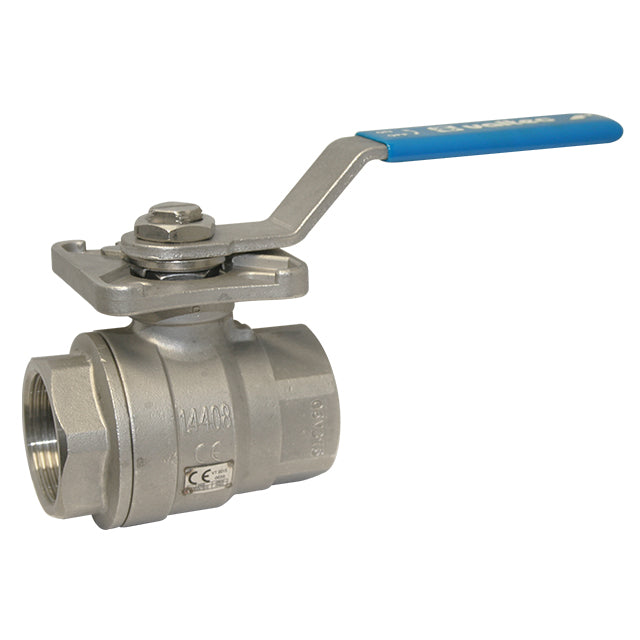

  • Stainless Steel Ball Valve - Two Piece - ISO Top - ATEX
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

ISO 5211 for Direct Mount, Screwed BSPP, Full Bore, Stainless Steel Body, Ball & Stem, PTFE Seats & Seals, Locking Lever, Anti-static Device. ATEX.

  • Connection: Threaded
  • Fitting: BSPP
  • Material: Stainless Steel
  • Seat Material: PTFE
  • Seal Material: PTFE
  • Handle Type: Locking Lever
  • Mounting: ISO 5211 | Direct Mount
  • Pressure Rating: PN63
  • Temperature: -29°C to 180°C
  • Approvals: ATEX

Product specification

General Material Stainless Steel
Body Material Stainless Steel
Seat Material PTFE
Seal Material PTFE
Handle Type Locking Lever
Connection Type Threaded
Fitting BSPP
Mounting Standard ISO 5211 | Direct Mount
Pressure Rating PN63
Temperature Range -29.0°C to 180.0°C
Additional Approvals ATEX
Manufacturer Valtec
Category Code BV1
Product Family 1501

Stainless Steel Ball Valve - Two Piece - ISO Top - ATEX

Available sizes: ¼"–3"

SKU: Select a size

Select a size for availability

Stainless Steel Ball Valve - Two Piece - ISO Top - ATEX

From

£19.92 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
1/4"
£19.92 ex VAT
Available
3/8"
£19.92 ex VAT
Available
1/2"
£24.54 ex VAT
Available
3/4"
£35.90 ex VAT
Available
1"
£44.12 ex VAT
Available
1 1/4"
£66.32 ex VAT
Available
1 1/2"
£77.09 ex VAT
Available
2"
£109.59 ex VAT
Available
2 1/2"
£256.29 ex VAT
Available
3"
£333.65 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.
