Connection
Flanged
Seat
PTFE
Pressure rating
PN16

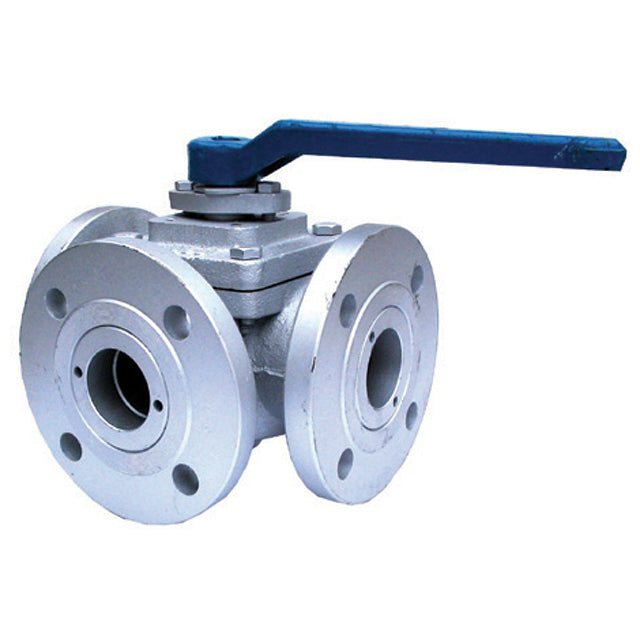

  • Cast Iron 3 Way Ball Valve - L Port - Flanged PN16
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

Flanged PN16, Full Bore, Cast Iron Body, Stainless Steel Ball & Stem, PTFE Seats, Lever Operated.

  • Connection: Flanged
  • Fitting: PN16
  • Material: Cast Iron
  • Seat Material: PTFE
  • Handle Type: Lever
  • Pressure Rating: PN16
  • Temperature: -10°C to 120°C

Product specification

General Material Cast Iron
Body Material Cast Iron
Seat Material PTFE
Handle Type Lever
Connection Type Flanged
Fitting PN16
Pressure Rating PN16
Temperature Range -10.0°C to 120.0°C
Category Code BV1
Product Family 1450

Cast Iron 3 Way Ball Valve - L Port - Flanged PN16

Available sizes: 2"–8"

SKU: Select a size

Select a size for availability

Cast Iron 3 Way Ball Valve - L Port - Flanged PN16

From

£500.49 ex VAT

(subject to size)

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance

Select a size

Size
Price
Stock
Qty
2"
£500.49 ex VAT
Available
2 1/2"
£581.18 ex VAT
Available
3"
£680.41 ex VAT
Available
4"
£1,035.65 ex VAT
Available
5"
£1,957.89 ex VAT
Available
6"
£2,382.30 ex VAT
Available
8"
£4,648.83 ex VAT
Available
Request a project quote

For project, repeat or volume orders, use Request a Project Quote and send us your requirements.

Size
View full details
