Connection
Flanged
Seat
PTFE
Pressure rating
PN16

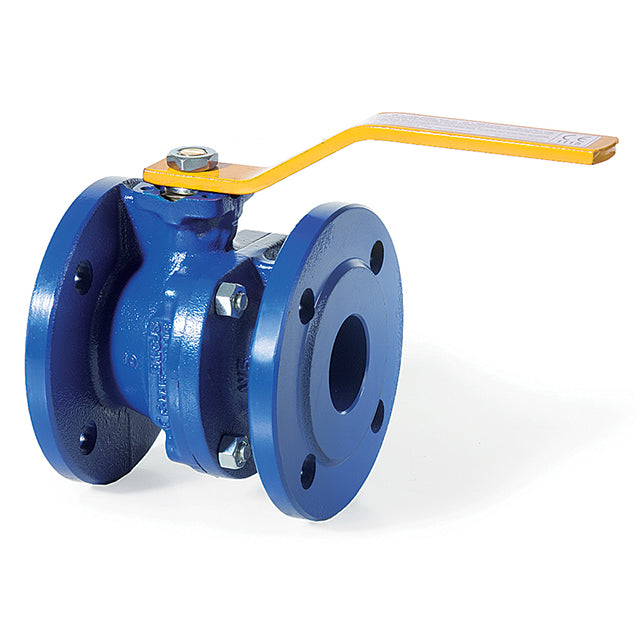

  • Cast Iron Ball Valve - Flanged Table E
1 1
View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

ISO 5211 for Direct Mount, Flanged BS10 Table E. Ductile Iron 2 Piece Body, Chromed Brass Ball, Brass Stem. PTFE Seats, NBR O-ring, Lever Operated.

  • Connection: Flanged
  • Fitting: Table E
  • Material: Cast Iron
  • Body Material: Ductile Iron
  • Seat Material: PTFE
  • O-Ring Material: NBR
  • Handle Type: Lever
  • Mounting: ISO 5211 | Direct Mount
  • Pressure Rating: PN16
  • Temperature: -10°C to 70°C

Product specification

General Material Cast Iron
Body Material Ductile Iron
Seat Material PTFE
O-Ring Material NBR
Handle Type Lever
Connection Type Flanged
Fitting Table E
Mounting Standard ISO 5211 | Direct Mount
Pressure Rating PN16
Pressure Rule Rated PN16, Gas Temperature -10°C to 70°C, Liquid Temperature -10°C to 100°C.
Temperature Range -10.0°C to 70.0°C
Manufacturer Brandoni
Category Code BV1
Product Family 1455

Cast Iron Ball Valve - Flanged Table E

Size: 3"

BV1-1455-300

Available

Cast Iron Ball Valve - Flanged Table E

£372.76 ex VAT

Same-day dispatch before 3PM on qualifying items.

Project pricing available on request

Technical selection support available

Pressure and compliance guidance
Size
View full details
