Material: Stainless Steel
Connection: Flanged
Seat: TFM 1600
Pressure rating: PN40

View datasheet

This datasheet is being prepared for the website. If you need a copy in the meantime, complete the form below and our team will send it over.

Product features

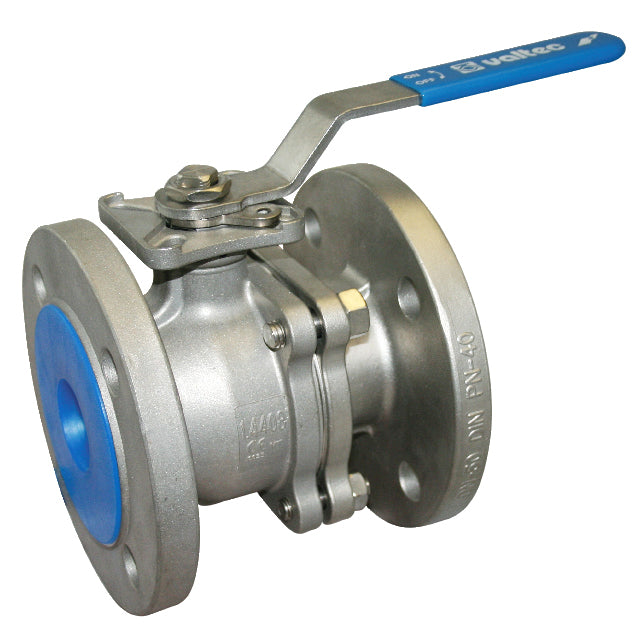

ISO 5211 for Direct Mount, Flanged PN10/16/25/40 ½" to 2", PN16 2½" to 8", Full Bore, Stainless Steel Body, Ball & Stem, TFM1600 Seats, Anti-blowout Stem, Anti-static Device, Firesafe Certified ½" to 4", Firesafe Design 5" to 8".

Connection: Flanged
Fitting: PN16
Material: Stainless Steel
Seat Material: TFM 1600
Mounting: ISO 5211 | Direct Mount
Pressure Rating: PN40
Temperature: -29°C to 200°C

Product specification

General Material	Stainless Steel
Body Material	Stainless Steel
Seat Material	TFM 1600
Connection Type	Flanged
Fitting	PN16
Mounting Standard	ISO 5211 \| Direct Mount
Pressure Rating	PN40
Pressure Rule	Rated PN40 1/2" to 2", PN16 2 1/2" to 8". Temperature -29°C to 200°C.
Temperature Range	-29.0°C to 200.0°C
Manufacturer	Valtec
Category Code	BV1
Product Family	1488
